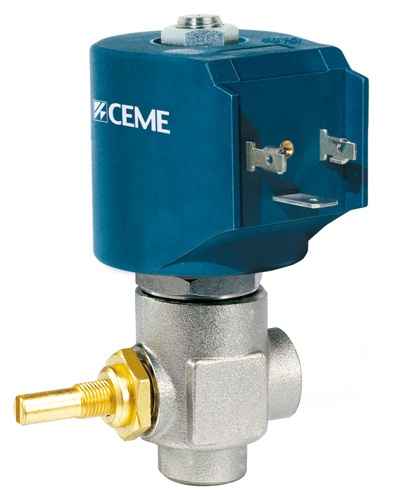

9922 (Main series 99)

Steam ironing (Main application)

9922
Download Technical specification
STEV99.635882998563583770.pdf
Main data
Suitability
Voltages
Applications
Inlet G 1/4
Outlet G 1/4
Operation Direct acting
Type 2/2 way NC
Seals material EPDM
M.O.P.D. AC 11.00 Bar 159.54 Psi
M.O.P.D. DC 6.00 Bar 87.02 Psi
Minimum differential working pressure 0.00 Bar 0.00 Psi
Ø Orifice 2.80 (mm) 0.11 (inch)
Flow Kv 0.232 (m³/h) 0.200 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Steam ironing
Other applications -
