8615 (Main series 86)

Multi purpose (Main application)

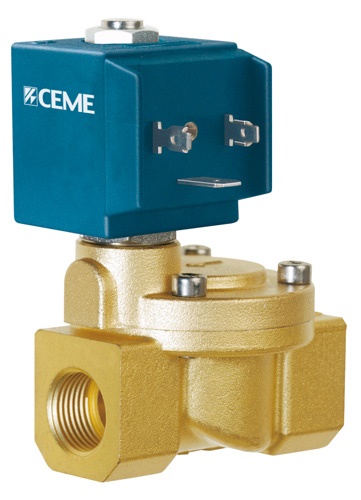

8615
Download Technical specification
STEV85-86.pdf
Main data
Suitability
Voltages
Applications
Inlet G 3/4
Outlet G 3/4
Operation Pilot operated
Type 2/2 way NC
Seals material NBR
M.O.P.D. AC 10.00 Bar 145.04 Psi
M.O.P.D. DC 10.00 Bar 145.04 Psi
Minimum differential working pressure 0.30 Bar 4.35 Psi
Ø Orifice 20.00 (mm) 0.79 (inch)
Flow Kv 6.612 (m³/h) 5.700 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Multi purpose
Other applications -
