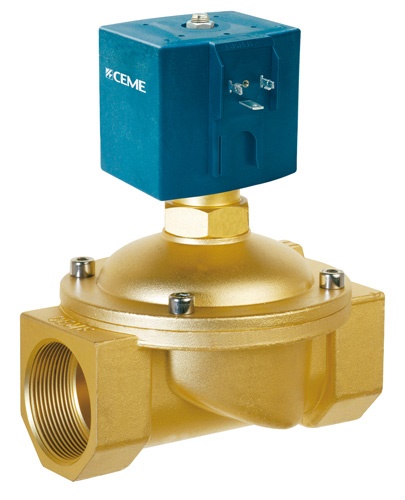

8419 (Main series 84)

Multi purpose (Main application)

8419
Download Technical specification
STEV84.pdf
Main data
Suitability
Voltages
Applications
Inlet G 2
Outlet G 2
Operation Servo-controlled
Type 2/2 way NC
Seals material NBR
M.O.P.D. AC 4.00 Bar 58.02 Psi
M.O.P.D. DC 2.00 Bar 29.01 Psi
Minimum differential working pressure 0.00 Bar 0.00 Psi
Ø Orifice 51.00 (mm) 2.01 (inch)
Flow Kv 37.584 (m³/h) 32.400 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Multi purpose
Other applications -
