8719 (Main series 87)

Multi purpose (Main application)

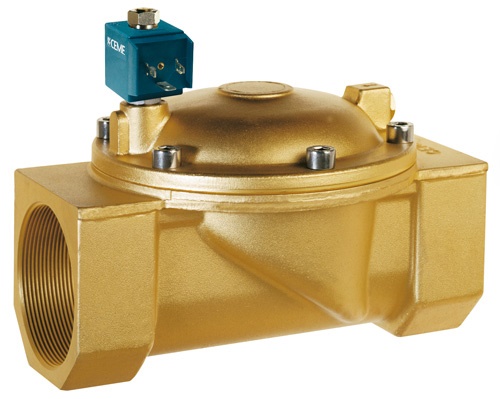

8719
Download Technical specification
STEV87.pdf
Main data
Suitability
Voltages
Applications
Inlet G 2
Outlet G 2
Operation Pilot operated
Type 2/2 way NO
Seals material NBR
M.O.P.D. AC 10.00 Bar 145.04 Psi
M.O.P.D. DC 10.00 Bar 145.04 Psi
Minimum differential working pressure 0.30 Bar 4.35 Psi
Ø Orifice 51.00 (mm) 2.01 (inch)
Flow Kv 40.600 (m³/h) 35.000 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Multi purpose
Other applications -
