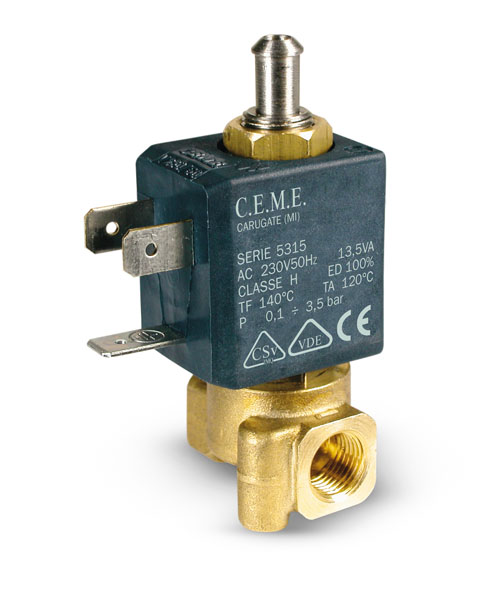

5315 (Main series 53)

Coffee Espresso (Main application)

5315
Download Technical specification
STEV52-53.pdf
Main data
Suitability
Voltages
Applications
Inlet G 1/8
Outlet G 1/8
Operation Direct acting
Type 3/2 way NC
Seals material FKM
M.O.P.D. AC 12.00 Bar 174.05 Psi
M.O.P.D. DC 5.50 Bar 79.77 Psi
Minimum differential working pressure 0.00 Bar 0.00 Psi
Ø Orifice 1.50 (mm) 0.06 (inch)
Flow Kv 0.075 (m³/h) 0.065 (Gal/min)
Water
Air
Inert gas
Flammable gas
Steam
Light oil
Refrigerants
Standard voltages 230 V 50 Hz
Other available voltages 24 V 50 Hz
12V 50Hz
110/120 V 60Hz
12 V DC
24 V DC
Other voltages on request
Main application Coffee Espresso
Other applications
